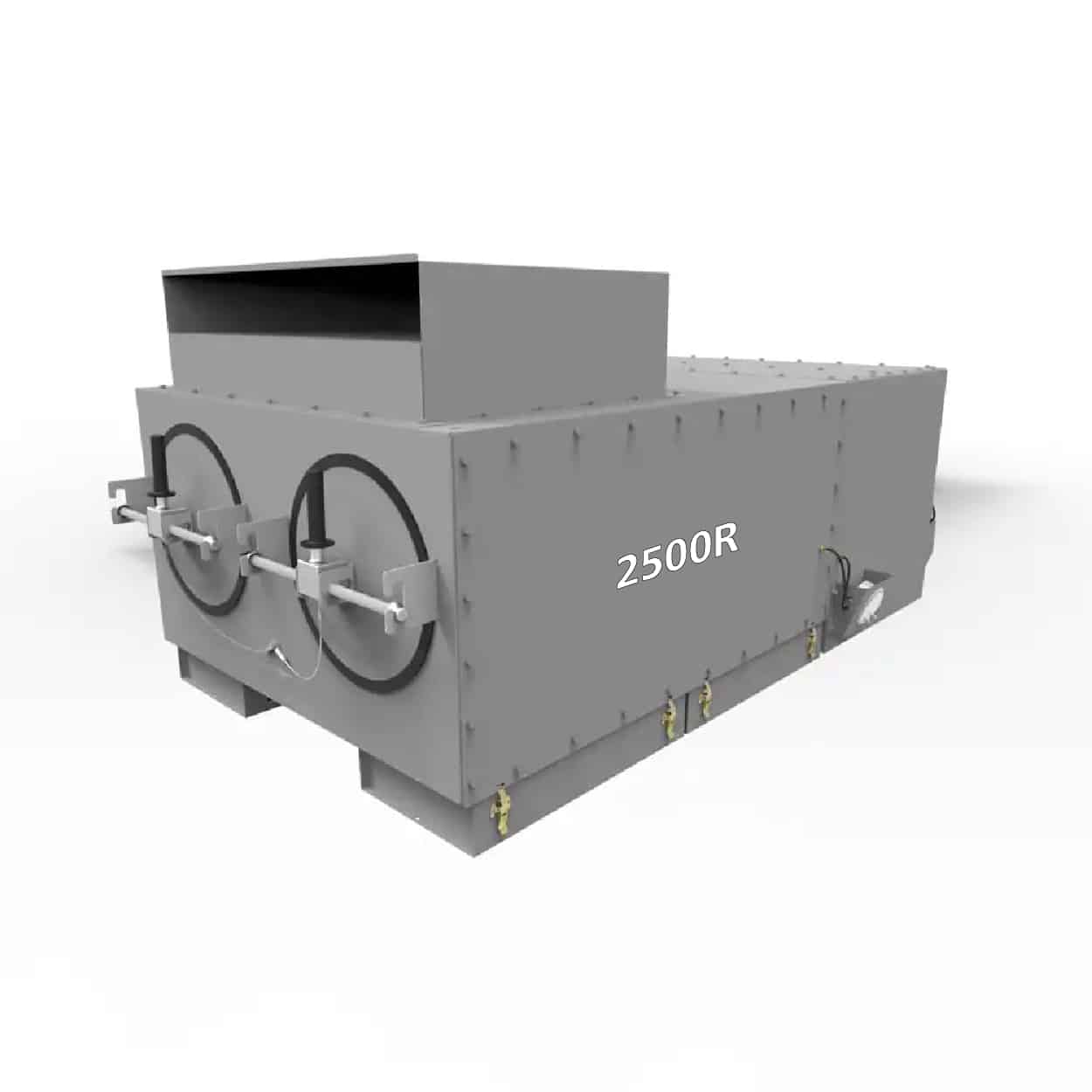

Mount Dust Collector Machine 2500R
Mount Dust Collector Machine 2500 is a ceiling-mounted ambient dust collector for dry dust and fume including welding fume.
Product details
Description
The Mount Dust Collector Machine 2500 is the perfect choice for applications where source capture is impractical. Installed above the plant floor, this continuous cleaning dust collection system draws fumes, dust, and other airborne contaminants from the workspace into a variety of available filters (Protura Nanofiber or Protura Nanofiber Fire Retardant (FR)), and recirculates the air back into the plant.
As a result, workers are able to benefit from healthy breathing conditions as well as unrestricted movement in their workspace. Pulse timer controller included. Motor starters, filter cartridges, and arms must be ordered separately.
Technical Specifications
- Model Number: SCA Right Discharge
- Optional Accessories: Call Us
- Input Supply Voltage:230-460V/3P/60H
- Motor Power Output Rating:3.0 HP
- Filter Included: No
- Control Method: External Motor Starter
- Air Flow Rate:2500 CFM
- Weight:837 lbs
- Application: Dust, Fume, Smoke, Ambient Media Collector
- Equipment Type: Non-Combustible Dry Dust
- Current:4.8 – 9.6 amp
- Depth:98 in
- Width:45 in
- Height:39.625 in
- Paint Type: Powder Coating
- Body Material: Mild Steel
- Brand: DustHog
- Filter Material: Cartridge
- Color: Hog Gray
- Air Consumption:0.78 SCFM per pulse
