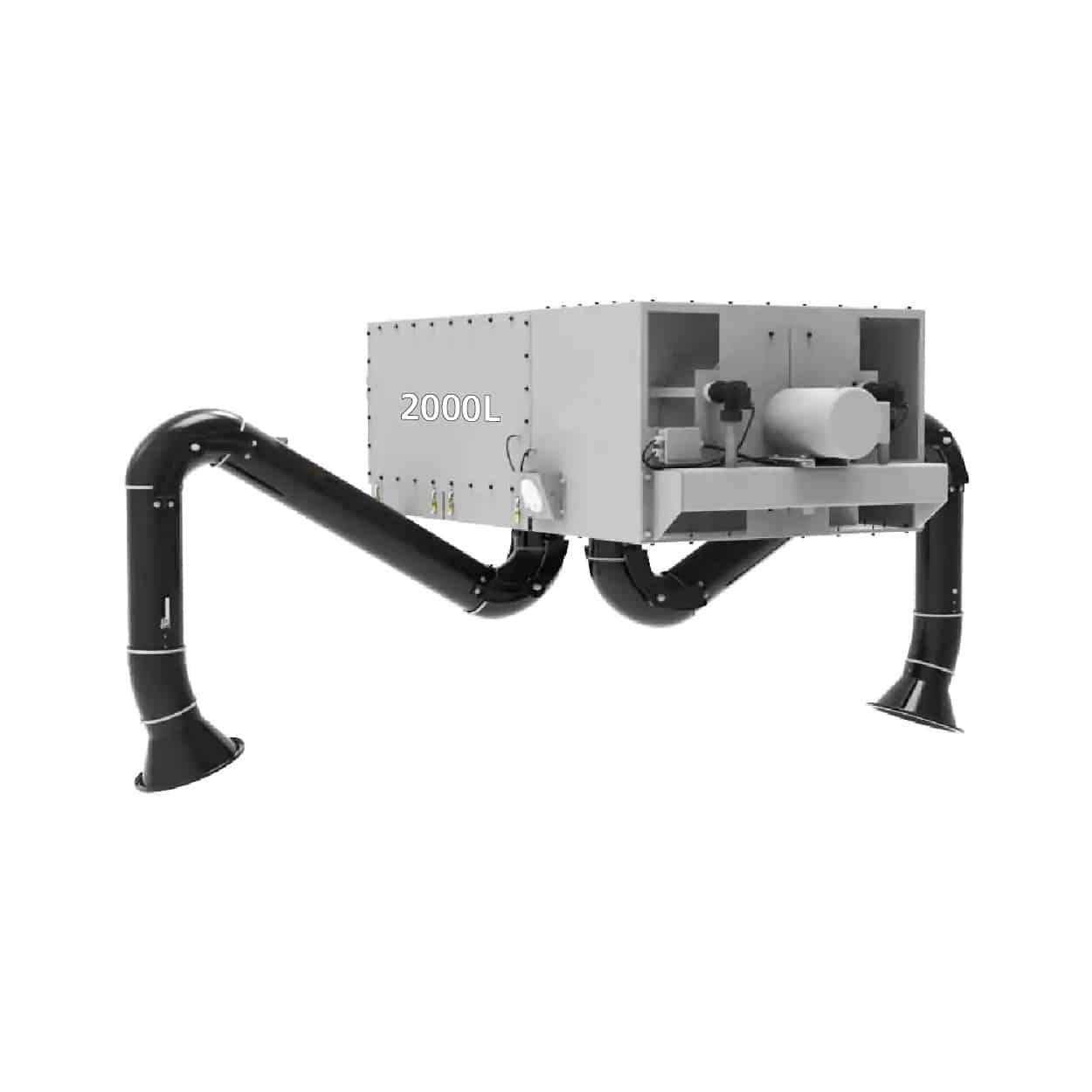

Mount Dust Collector Machine 2000L
Mount Dust Collector Machine 2000 is a ceiling-mounted source capture dust collector for dry dust and fume including welding fume using extraction arms or ducting.
Product details
Description
The Mount Dust Collector Machine 2000 is the perfect choice for applications where a source is required and floor space is a premium.
Installed above the plant floor, this continuous cleaning dust collection system draws fumes, dust, and other airborne contaminants from the workspace using two 7’/10’/12′ that are 8-inch diameter counter balanced extraction arms, 6/8 inch flexible or rigid duct via inlet collars that are located close to the fume or dust generation source and collecting into a variety of available filters (Protura Nanofiber or Protura Nanofiber Fire Retardant (FR)), and recirculates the air back into the plant.
As a result, workers are able to benefit from healthy breathing conditions as well as unrestricted movement in their workspace. Pulse timer controller included. Motor starters, filter cartridges, and arms must be ordered separately.
Technical Specifications
- Air Flow Rate:2000 CFM
- Input Supply Voltage:230-460V/3P/60H
- Optional Accessories:(2) 8 inch 7’/10’/12′ extraction arms or inlet collar
- Motor Power Output Rating:3.0 HP
- Filter Included: No
- Model Number: SCA Left Discharge
- Control Method: External Motor Starter
- Weight:775 lbs
- Application: Dust, Fume, Smoke, Non-Combustible Dry Dust
- Equipment Type: Source Capture Media Collector
- Current:4.8 – 9.6 amp
- Depth:98 in
- Width:45 in
- Height:39.625 in
- Paint Type: Powder Coating
- Body Material: Mild Steel
- Brand: DustHog
- Filter Material: Cartridge
- Color: Hog Gray
- Air Consumption:0.78 SCFM per pulse
