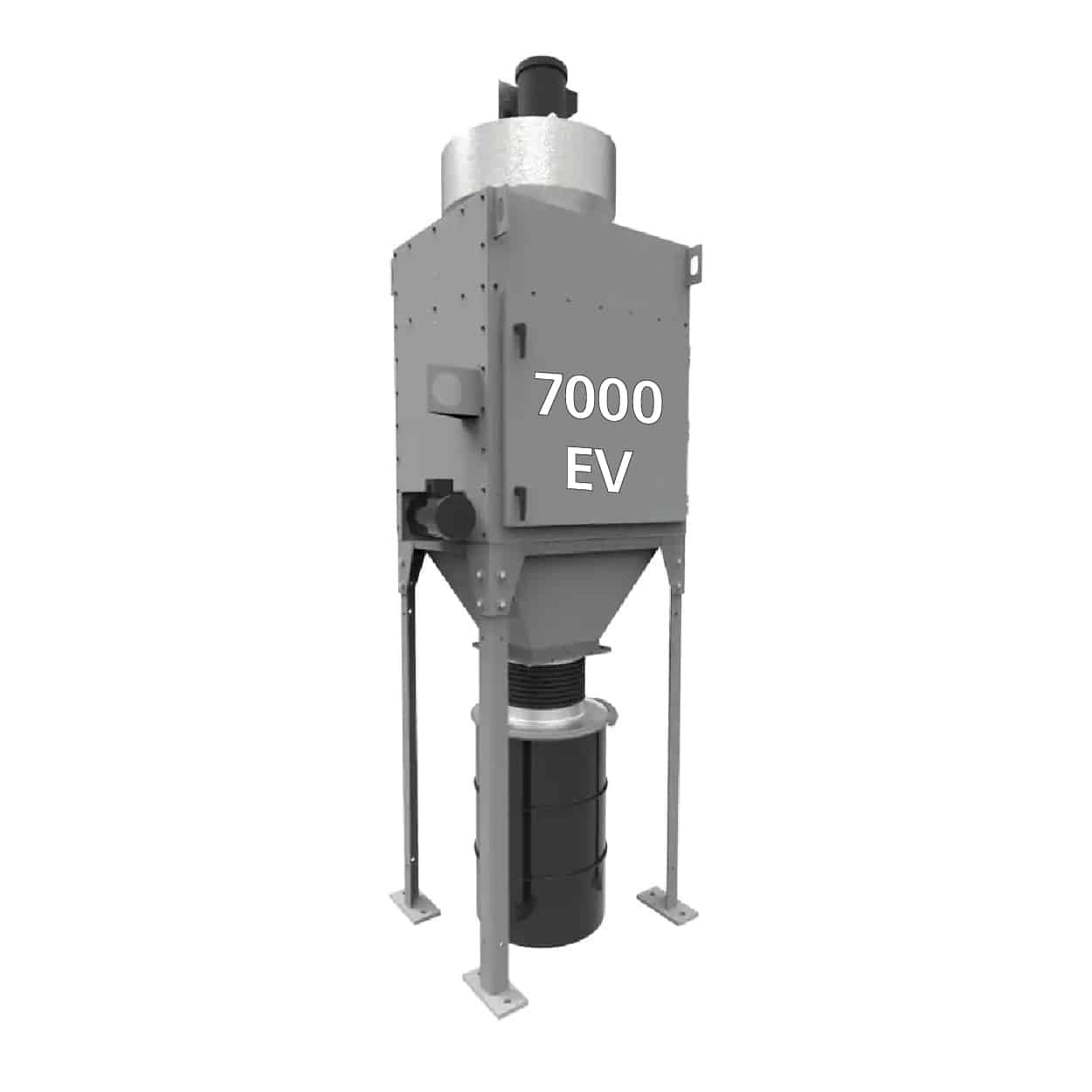

Dust Collector Machine 7000EV

The Dust Collector Machines in the shape of shakers are ideal for intermittent processes.

This Dust Collector Machine offers the flexibility and versatility needed to remove harmful pollutants resulting from common manufacturing processes in both institutional and industrial applications.

Product details

Description

The Dust Collector Machine shaker-style systems safely and effectively collect airborne pollutants captured at the source helping ensure the safety of employees and students while achieving OSHA and NFPA regulatory compliance for combustible or explosive dust. This Dust Collector Machine proven performance in removing up to 99% of dust by weight will keep your facility cleaner which improves product quality, reduces maintenance time, and ultimately, leads to operational savings.

The compact, self-contained design takes up very little floor space and reduces installation costs resulting in a convenient and economical solution. Achieve even further operational savings due to the high-frequency vibratory cleaning system that eliminates the need for costly compressed air.

This system’s user-friendly, tool-free filter sealing mechanism makes routine inspections and filter change-outs quick and easy. Options and add-ons to the base unit include Fans / Dampers / Silencers, Drum Lid Options, 20- or 55-Gallon Drums, Drawer Base, Sprinkler Connection Points, Slide Gates, Explosion Vent (Membrane), Non-Return Valves, Rotary Airlock, Combustible Dust Drum Kit, Hopper Access Doors, Slip or Flanged Inlet Collars, VFDs, Magnehelic Gauge, and Motor Starters.

Technical Specifications

  • Input Supply Voltage:230-460V/3P/60H
  • Motor Power Output Rating:15, 20, 25, 30 HP
  • Model Number: SDC-700, EXPLOSION VENT
  • Motor Control Options: Motor Starter not included
  • Inlet Connection Size:12, 14 in
  • Air Flow Rate:7000 CFM
  • Filter Included: No
  • Optional Accessories: Shaker, Motor Starter, Remote Starter, Magnehelic
  • Control Method: External control and motor starter
  • Weight:1610 lbs
  • Application: Wood, Plastic, Paper, Chemical, Food, Combustible, and Non-Combustible Dry Dust
  • Equipment Type: Stationary Medial Collector
  • Depth:37 in
  • Width:81 in
  • Height:118 in (w/o blower)
  • Paint Type: Powder Coating
  • Body Material: Mild Steel
  • Brand: DustHog
  • Filter Material: Bag Media Cartridge
  • Color: Hog Gray
  • Additional Options: 20 and 55-gallon drum, slide gate, extended leg set
