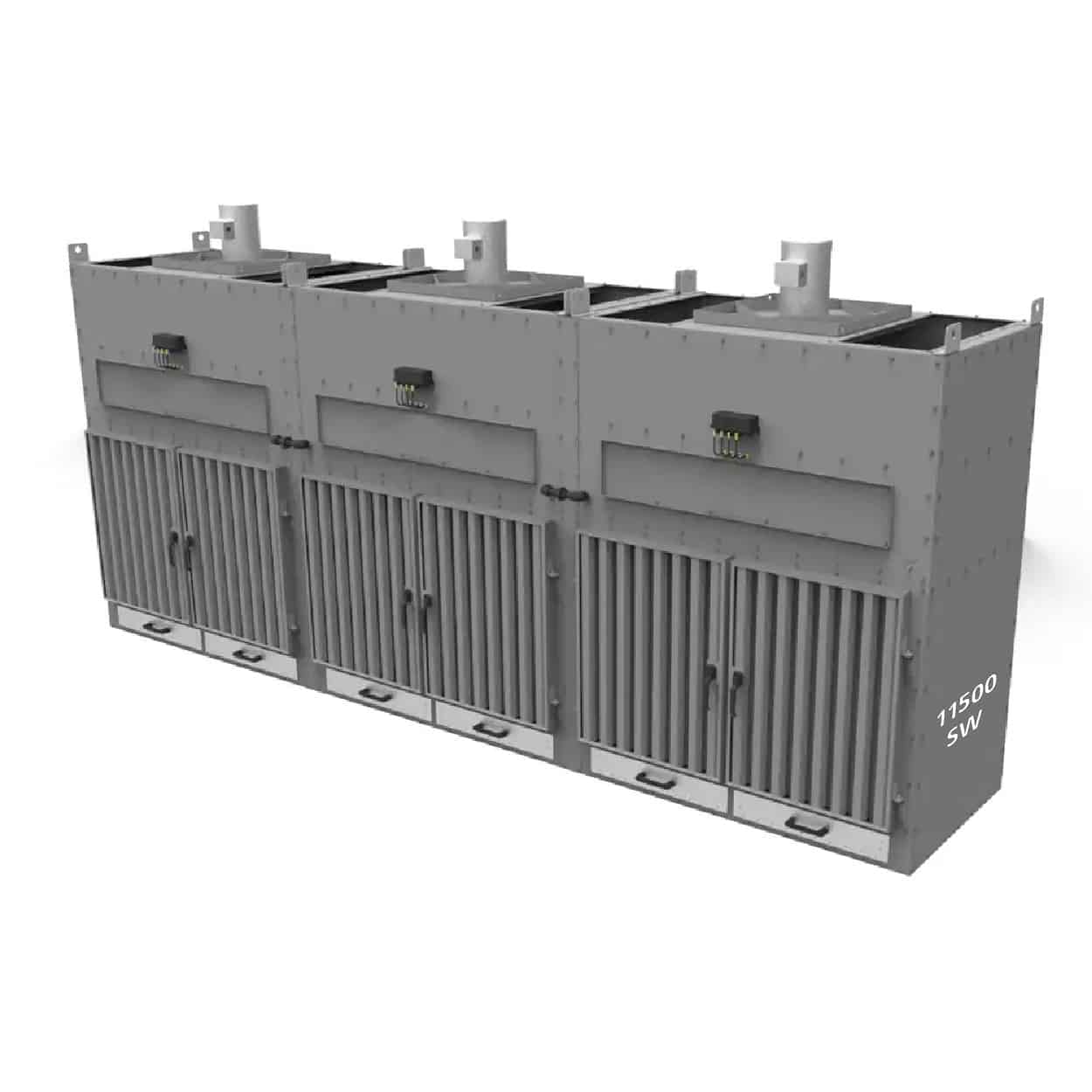

Dust Collector Machine 11500SW
The Dust Collector Machine is a completely self-contained system
that provides high-filtration efficiency, freedom from source capture obstructions, and easy maintenance.
The Dust Collector Machine offers versatile configurations.
Product details
Description
The Dust Collector Machine unit creates a cross-draft ventilation that eliminates hazardous contaminants before recirculating clean air. It prevents fine dust from migrating to areas with sensitive electrical and mechanical equipment. There are no obstructions from source capture devices, worker can perform their job without the need for fume arms, hoods, or other barriers that can interfere with manufacturing operations and parts movement.
The units come in 3ft, 6ft, and 9ft sections and can be combined to create any width and CFM combination in 3 ft increments. After filters can be added for improved air quality. Preconfigured single and multiple unit packages providing 4,000 to 38,000 CFM. Higher CFM applications are achieved by combining multi-unit packages.
Technical Specifications
- Motor Power Output Rating:10 HP
- Input Supply Voltage:460V/3P/60H
- Filter Material: Round Media Cartridge
- Optional Accessories: Pulse Timer or Digital Pulse Controller
- Additional Options:95% or HEPA After Filter
- Air Flow Rate:11500 CFM
- Model Number: MCB-09, Steel Wheel
- Filter Included: No
- Control Method: External control and motor starter
- Weight:2400 lbs
- Application: Dust, Fume, Smoke, Non-Combustible Dry Dust
- Equipment Type: Stationary Medial Collector
- Current:14 amp
- Depth:42 in
- Width:116 in
- Height:107 in
- Paint Type: Powder Coating
- Body Material: Mild Steel
- Brand: DustHog
- Color: Hog Gray
- Air Consumption:1.82 SCFM per pulse
- Motor Control Option: Motor Starter not included
